Osculati

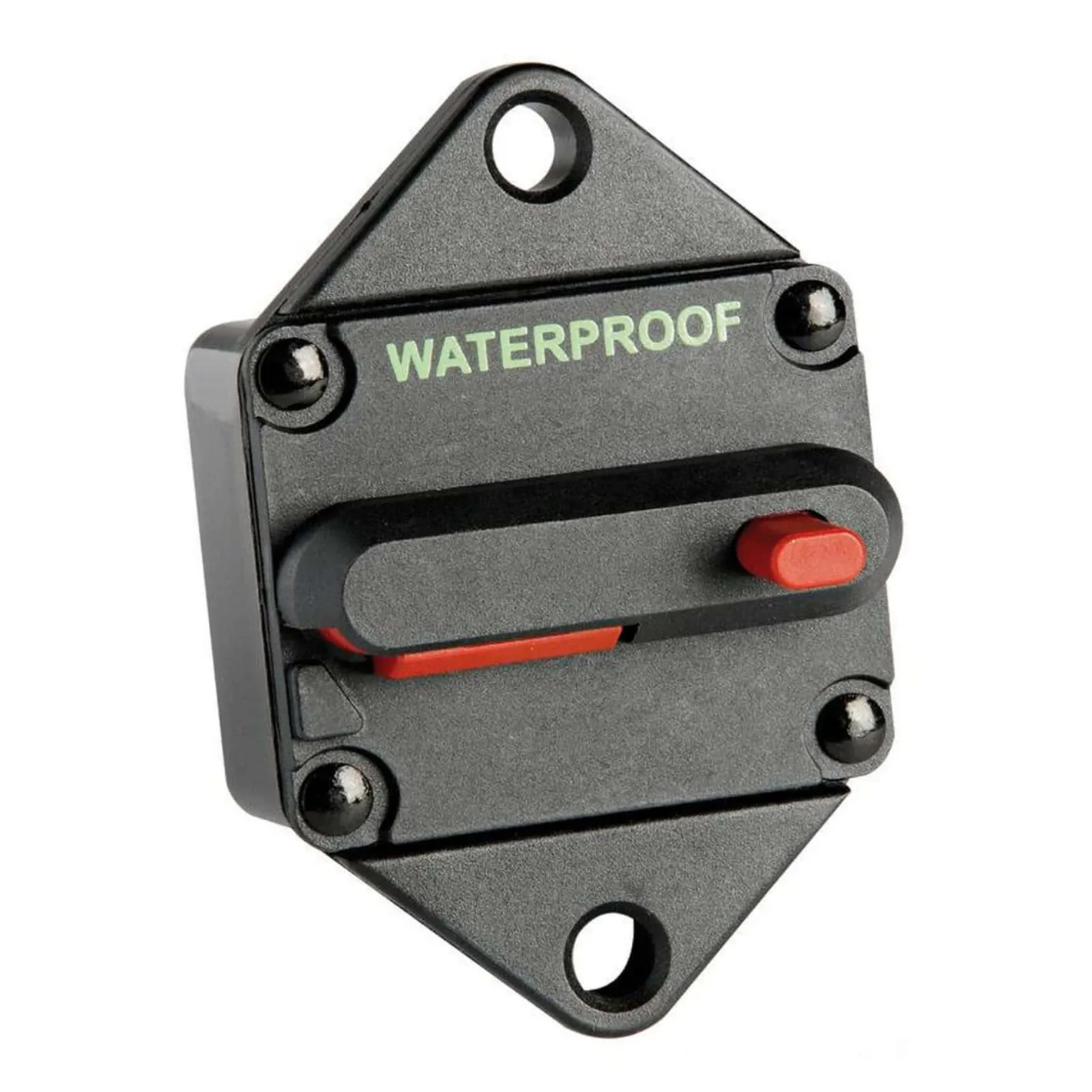

Waterproof magnetothermal protection switch for winch and bow thruster

Codice prodotto: G044599-A1
Thermal switch
Within 24 hours
€9.94
G044599-A1

Description
Resettable, it can be released by means of a special lever. It is both a fuse and a switch.
Manufactured in accordance with USA SAE J1171 / SAE J1625 standards. Allowed voltage: max 42 V, operating temperature: -32° + 82°.
Diameter pins 6 mm x2. IP67 Weatherproof.
With 1/4" electrical terminals.
8033137042799
Catalogo PDF Download (297B)

Choose the model

Image Code Add to cart Version Variant Choice Max load A Optional rubber seal Price
G044599-A1
add to cart

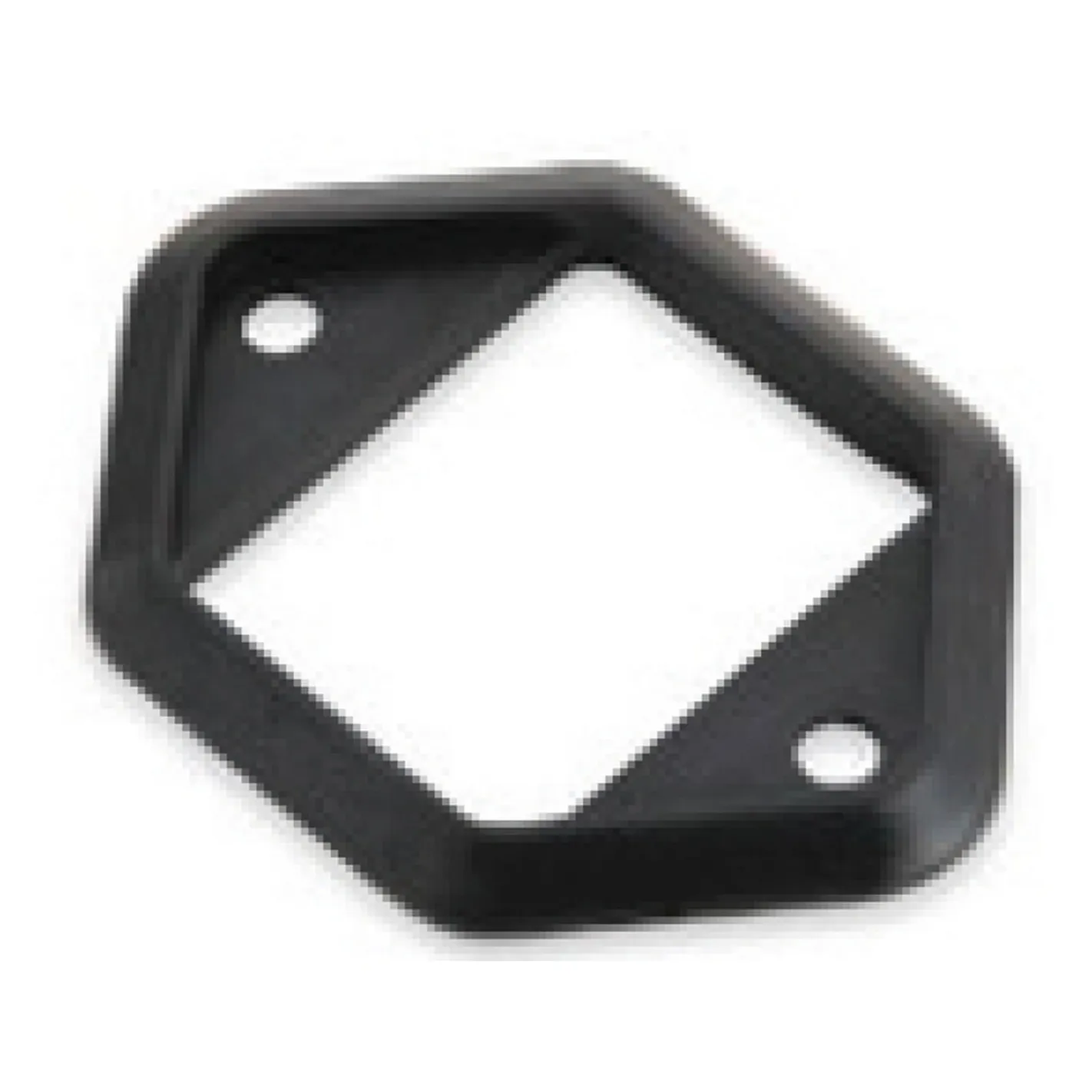

 - Rubber gasket - - €9.94
G044502
add to cart
 For recess fit Flush-mounted - Max 100A 100 [02.750.00] €35.77
G044503
add to cart
 For recess fit Flush-mounted - Max 120A 120 [02.750.00] €35.77
G044504
add to cart
 For recess fit Flush-mounted - Max 150A 150 [02.750.00] €35.77
G044505
add to cart
 For recess fit Flush-mounted - Max 200A 200 [02.750.00] €35.77
G044500
add to cart
 For recess fit Flush-mounted - Max 60A 60 [02.750.00] €35.77
G044501
add to cart
 For recess fit Flush-mounted - Max 80A 80 [02.750.00] €35.77
G044512
add to cart
 External External - Max 100A 100 - €35.77
G044513
add to cart
 External External - Max 120A 120 - €35.77
G044514
add to cart
 External External - Max 150A 150 - €35.77
G044515
add to cart
 External External - Max 200A 200 - €35.77
G044510
add to cart
 External External - Max 60A 60 - €35.77
G044511
add to cart
 External External - Max 80A 80 - €35.77
