BRIDGE telescopic hydraulic gangways with mirror-polished AISI 316 stainless steel structure

Name: BRIDGE telescopic hydraulic gangways with mirror-polished AISI 316 stainless steel structure
Brand: Bridge
SKU: A1187
Price: 17323.4 EUR
Availability: InStock

Codice prodotto: A118720

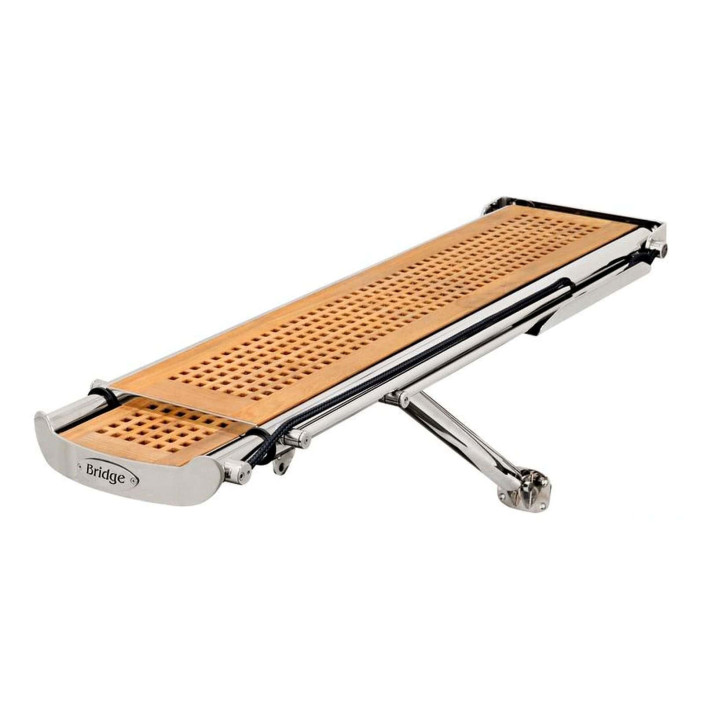

Bridge hydraulic gangway

Within 3 working days

€17,323.40

Codice variante selezionata A118720

Description

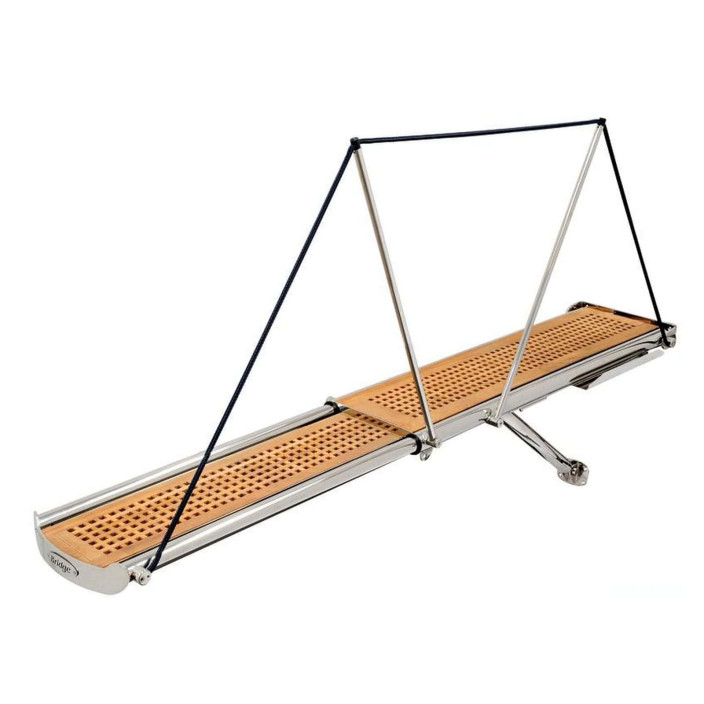

Automatically foldable stanchions to be mounted on both sides of the gangway.

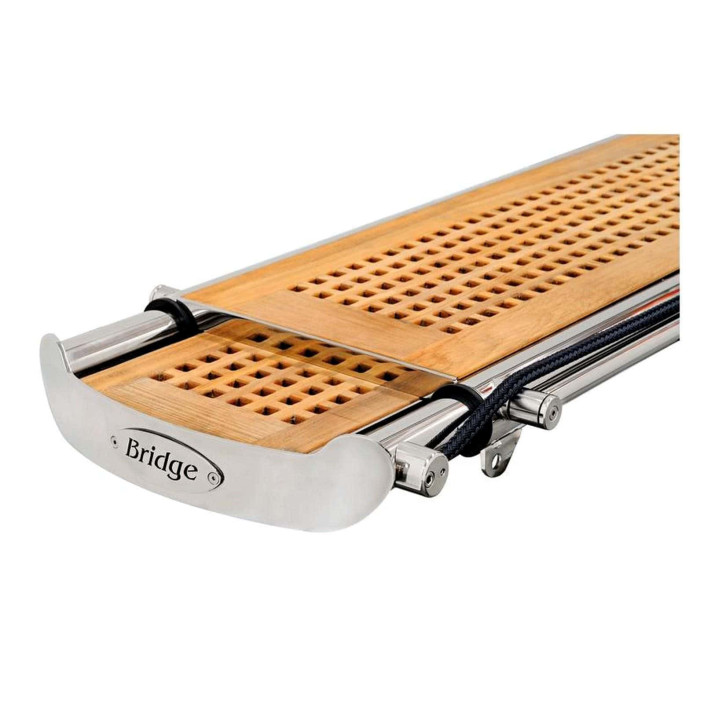

Real TEAK BORMA grating.
Electronic control unit with simple "PLUG & PLAY" wiring.
Possibility to modify the gangway fulcrum position for an optimal positioning of the lifting piston.
The 12- or 24-volt gangway (to be specified) is equipped with:
- Hydraulic control unit with electrovalve
- High-pressure hydraulic piping with AISI 316 S.S. fittings
- Electronic control unit
- Built-in control panel
- Radio remote control
- Stanchions
- Stern plate
- Instructions for installation and use.

EAN13 8033137135514

Catalogo PDF Download (298B)

Choose the model

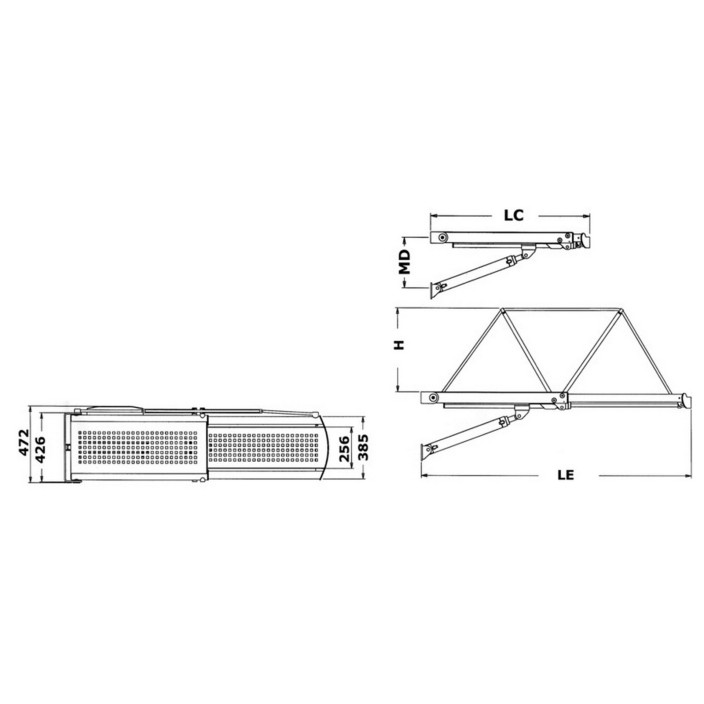

Code	Add to cart	Variante	H mm	LE mm	LC mm	Version	Variant Choice	Weight	Minimum MD	Lifting capacity kg	Price
A118720	add to cart	12 V	800	2000	1200	Bridge 20	2m - 12V	60	300	200	€17,323.40
A118723	add to cart	12 V	800	2300	1360	Bridge 23	2,3m - 12V	64	300	200	€17,724.00
A118727	add to cart	12 V	800	2700	1575	Bridge 27	2,7m - 12V	71	300	200	€18,348.10
A118730	add to cart	12 V	800	3000	1735	Bridge 30	3m - 12V	75	320	150	€18,931.60
A118721	add to cart	24 V	800	2000	1200	Bridge 20	2m - 24V	60	300	200	€17,323.40
A118724	add to cart	24 V	800	2300	1360	Bridge 23	2,3m - 24V	64	300	200	€17,724.00
A118728	add to cart	24 V	800	2700	1575	Bridge 27	2,7m - 24V	71	300	200	€18,348.10
A118731	add to cart	24 V	800	3000	1735	Bridge 30	3m - 24V	75	320	150	€18,931.60
