UP-DOWN TV-LIFT

Name: UP-DOWN TV-LIFT
Brand: Oceanair
SKU: C6417
Price: 2086.2 EUR
Availability: InStock

Codice prodotto: C641700

TV LIFT

Within 3 working days

€2,086.20

Codice variante selezionata C641700

Description

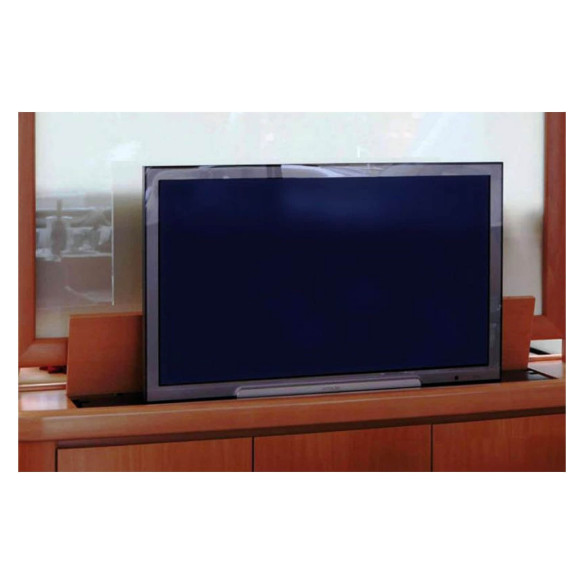

Vertical electrical lift for TV set. Compatible with VESA 75/100 /200 fastening systems. Black coated or anodized elements. 22- to 25-mm/s approx. speed depending on the TV set weight.
Elements painted or anodized in black.
Approximate speed from 22 to 25 mm/s depending on the TV weight.
Requires a 6-pole switch to reverse polarity. Type 14.192.03 or 48.749.01

EAN13 8033137151446

Catalogo PDF Download (298B)

Choose the model

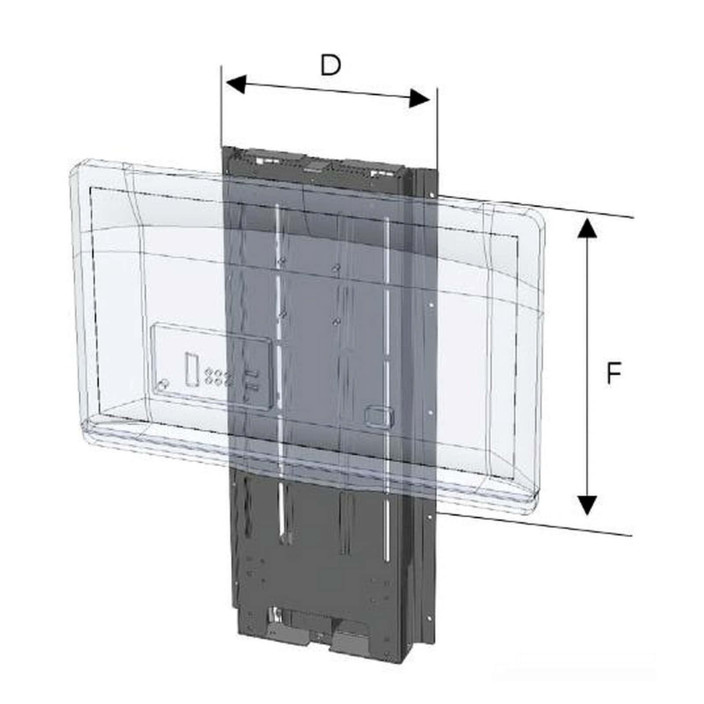

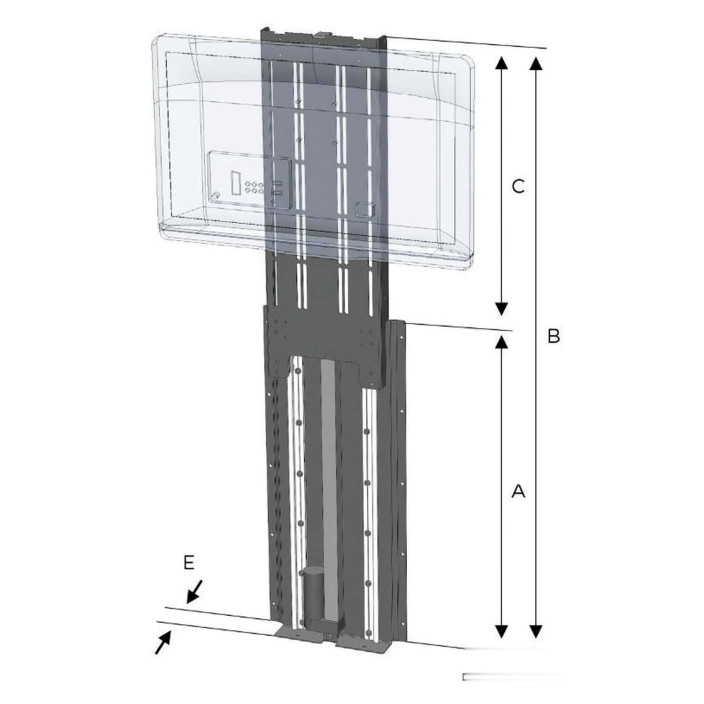

Code	Add to cart	V	Variant Choice	Inner height A mm	Outer height B mm	Stroke C mm	Width D mm	Thickness E mm	TV set max height F mm	Price
C641700	add to cart	12	12V - 650-1165mm	650	1165	515	300	58	500	€2,086.20
C641701	add to cart	12	12V - 700-1265mm	700	1265	565	300	58	550	€2,354.40
C641711	add to cart	24	24V - 700-1265mm	700	1265	565	300	58	550	€2,354.40
C641702	add to cart	12	12V - 750-1365mm	750	1365	615	300	58	600	€2,503.40
C641712	add to cart	24	24V - 750-1365mm	750	1365	615	300	58	600	€2,503.40
